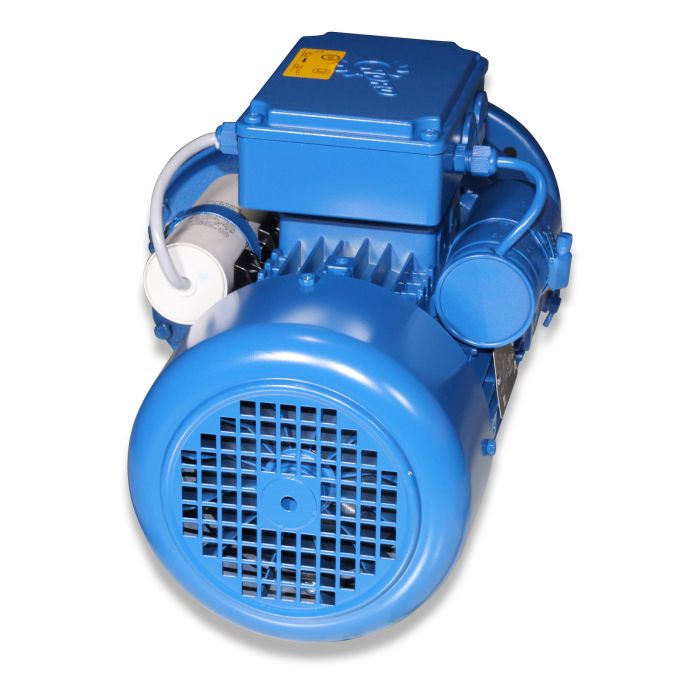

Mot-g 1.5 230V 50Hz 1Ph 30r SK30F-90L/4 EAR shaft 35x58

SKU

90-00-4091

Sales unit 1 pc

Dimensions
Length	487.00	mm
Width	251.00	mm
Height	256.00	mm
Actual weight	32.960	kg

Basic data
Running mode	S1	S1-S10

Rated values
Phases	1	Anzahl
Frequency	50	Hz
Permiss. ambient temp. during operation	40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F

Dimensions
Output shaft length	58	Länge mm

Rated values 50 Hz
Nominal power	1,5	kW
Nominal voltage single-phase	230	V
Current consumption single-phase	9,73	A
Power factor	0.95
Gear speed	30	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
