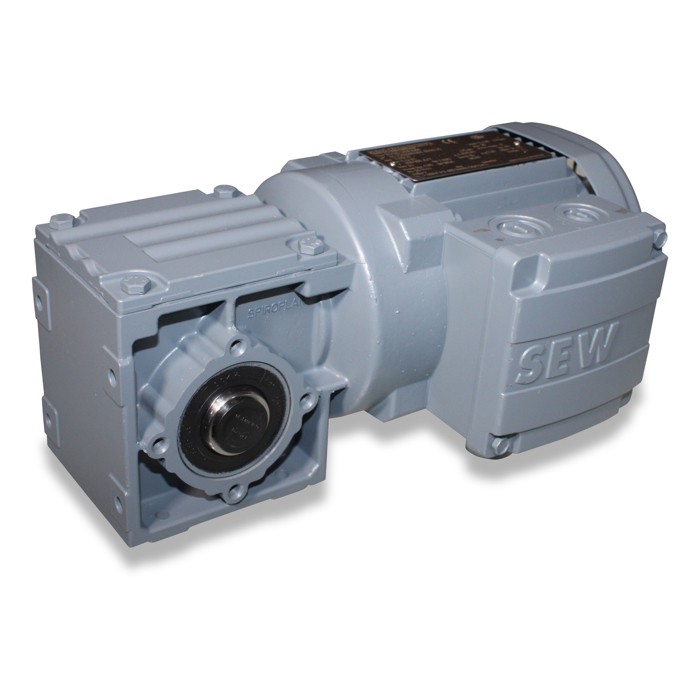

Mot-g 0.12 208/36060/3/15WA20 DR63M6 hol sh20UL f/ElevEC NAT

SKU

90-00-4101

Sales unit 1 pc

Dimensions
Length	311.00	mm
Width	170.00	mm
Height	131.00	mm
Actual weight	7.200	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B14
Motor size	63
Gear type	Worm gear
Gear design	Flange version
Gear position	M1	M1-M6
Menge Getriebeöl	0.24	kg
Norm	IEC60034
Weight	7.7	kg

Rated values
Phases	3	Anzahl
Frequency	60	Hz
Type of connection	Star/Delta
Controllable by	nicht regelbar
Permiss. ambient temp. during operation	-10 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP54	IP
Insulation class	B
Certifications	UL, CE

Rated values 60 Hz
Nominal power	0,12	kW
Nominal voltage delta connection	208	V
Nominal voltage star connection	360	V
Current consumption delta connection	0,81	A
Current consumption star connection	0,47	A
Power factor	0.63
Efficiency	59.5
Servicefaktor	1	S.F.
Motor speed	1105	r/min
Gear speed	15	r/min
Nennmoment Getriebe [Volllast]	30	Nm
Service factor	1.3	Fs
